Practice paper, not an official KPM paper
Sains Tahun 3
Ujian Akhir Sesi AkademikEnd of Academic Session Test
SainsScience
Darjah 3, 1 jam / 1 hour, 40 marks
Nama / Name
Kelas / Class
Tarikh / Date
Markah / Marks: / 40
Instructions
- Jawab semua soalan.Answer all questions.
- Bahagian A: bulatkan satu jawapan yang betul.Section A: circle one correct answer.
- Bahagian B: tulis jawapan anda di ruang yang disediakan.Section B: write your answers in the spaces provided.
Answer schemes are in English (DLP).
Practice shows answers as you go. Exam times you and hides answers until you submit.
Bahagian ASection A
10 marksJawab semua soalan. Setiap soalan diikuti oleh empat pilihan jawapan, A, B, C dan D. Bulatkan satu jawapan yang betul.Answer all questions. Each question has four options, A, B, C and D. Circle one correct answer.
1
Question 1
Rajah 1 menunjukkan satu corak bentuk. Ramalkan bentuk yang seterusnya di tempat bertanda ?.Diagram 1 shows a pattern of shapes. Predict the next shape at the place marked ?.
Show answerHide answer
A
The pattern repeats: triangle, circle, circle. The row ends with a triangle and one circle, so the next shape is another circle. A prediction uses the pattern as a clue (textbook p. 11).
2
Question 2
Mengapakah kita perlu membuka semua pintu dan tingkap sebelum memulakan aktiviti di dalam bilik sains?Why must we open all the doors and windows before an activity in the Science Room?
Show answerHide answer
B
We open the doors and windows to let in light and fresh air. A closed room becomes hot, dark and stuffy (textbook p. 24).
3
Question 3
Bahagian gigi manakah ialah lapisan luar yang keras dan putih serta melindungi gigi?Which part of a tooth is the hard, white outside layer that protects the tooth?
Show answerHide answer
D
Enamel is the hard, white outside layer of a tooth and it protects the tooth. Dentine is the layer under the enamel.
4
Question 4
Bayangkan seekor kambing yang mempunyai gigi taring yang panjang dan tajam seperti singa, bukan gigi kacip dan geraham. Mengapakah kambing itu sukar untuk makan rumput?Imagine a goat that has long, sharp canines like a lion, instead of incisors and molars. Why would the goat find it hard to eat grass?
Show answerHide answer
C
A herbivore needs incisors to cut plants and molars to grind them. Sharp canines tear meat, so they cannot cut or grind grass well. The teeth must suit the food (textbook pp. 65-66).
5
Question 5
Pasangan tumbuhan manakah yang membiak melalui biji benih?Which pair of plants reproduces through seeds?
Show answerHide answer
A
Plants that make fruits reproduce through seeds. Chilli and durian have seeds inside their fruits. Fern and mushroom use spores, ginger and potato are underground stems, and banana and yam grow suckers (textbook p. 72).
6
Question 6
Rajah 4 menunjukkan kubus kecil yang disusun untuk memenuhi sebuah kotak dengan tepat. Isi padu setiap kubus ialah 1 cm³. Berapakah isi padu kotak itu?Diagram 4 shows small cubes packed to fill a box exactly. The volume of each cube is 1 cm³. What is the volume of the box?
Show answerHide answer
C
The block is 4 cubes long, 2 cubes high and 2 cubes deep. Each layer has 4 × 2 = 8 cubes and there are 2 layers, so 8 × 2 = 16 cubes = 16 cm³. 13 cm³ is wrong because it counts only the cubes we can see; 3 cubes are hidden at the back and bottom.
7
Question 7
Sebatang kayu balak yang besar dan berat terapung di atas air, tetapi sehelai getah gelang yang kecil dan ringan tenggelam. Pernyataan manakah yang menerangkan perkara ini?A big, heavy log floats on water, but a small, light rubber band sinks. Which statement explains this?
Show answerHide answer
B
Floating and sinking depend on density, not on size or weight. The log is heavy but less dense than water, so it floats. The rubber band is light but more dense than water, so it sinks (textbook p. 99).
8
Question 8
Seekor lebah menyengat Ahmad. Sengatan lebah bersifat berasid. Bahan manakah yang sesuai disapu pada sengatan itu sebagai pertolongan cemas?A bee stings Ahmad. A bee sting is acidic. Which substance is suitable to put on the sting as first aid?
Show answerHide answer
D
An acid and an alkali cancel each other out. Sodium bicarbonate is alkaline, so it cancels the acidic bee sting. Vinegar, lime juice and tamarind juice are acidic (textbook p. 111).
9
Question 9
Planet manakah yang paling jauh dari Matahari dan paling sejuk?Which planet is the farthest from the Sun and the coldest?
Show answerHide answer
D
Neptune is the eighth planet, so it is the farthest from the Sun. The farther a planet is from the Sun, the colder it is, so Neptune is the coldest (textbook p. 121).
10
Question 10

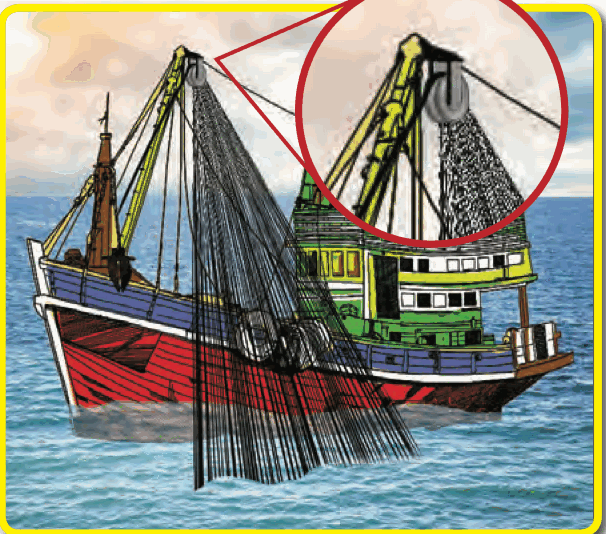

Rajah 7 menunjukkan nelayan menarik pukat dengan bantuan takal. Apakah beban yang dinaikkan oleh takal itu?Diagram 7 shows fishermen pulling up a net with the help of a pulley. What is the load that the pulley lifts?
Show answerHide answer
B
A load is the heavy thing we want to lift. The pulley helps the fishermen lift the heavy net full of fish (textbook p. 131).
Bahagian BSection B
30 marksJawab semua soalan. Tulis jawapan anda di ruang yang disediakan.Answer all questions. Write your answers in the spaces provided.
11
Question 11
Raju dan Wei Jie berlari mengelilingi padang sekolah. Cikgu menggunakan jam randik digital untuk mencatat masa mereka. Rajah 8 menunjukkan jam randik P untuk Raju dan jam randik Q untuk Wei Jie.Raju and Wei Jie run round the school field. The teacher uses digital stopwatches to record their times. Diagram 8 shows stopwatch P for Raju and stopwatch Q for Wei Jie.
[1 mark]
(a)Tulis masa yang ditunjukkan oleh jam randik P. Tulis unit juga.Write the time shown by stopwatch P. Write the units too.
Show answerHide answer
Tick each point you got.
[1 mark]
(b)Siapakah yang berlari lebih laju?Who runs faster?
Show answerHide answer
Wei Jie
Wei Jie takes 1 minute 58 seconds, which is a shorter time than Raju's 2 minutes 14 seconds, so he runs faster.
[1 mark]
(c)Muka Raju merah dan dia berpeluh. Wei Jie berkata, "Mungkin Raju penat kerana berlari." Apakah kemahiran proses sains yang digunakan oleh Wei Jie?Raju's face is red and he is sweating. Wei Jie says, "Maybe Raju is tired from running." Which science process skill does Wei Jie use?
Show answerHide answer
Making inferences
"Maybe Raju is tired" is a sensible first reason for what Wei Jie observes, so it is an inference (textbook p. 9).
[1 mark]
(d)Wei Jie menulis kedua-dua masa itu di dalam jadual untuk ditunjukkan kepada kawan-kawannya. Namakan kemahiran proses sains yang digunakan.Wei Jie writes both times in a table to show his friends. Name the science process skill he uses.
Show answerHide answer
Communicating means sharing information using tables, graphs or diagrams (textbook p. 13).
Tick each point you got.
12
Question 12
Rajah 9 menunjukkan dua orang murid di dalam bilik sains. Mereka mencontengi permukaan meja.Diagram 9 shows two pupils in the Science Room. They scribble on the table.
[1 mark]
(a)Adakah mereka mematuhi peraturan bilik sains?Do they follow the Science Room rules?
Show answerHide answer
No
One rule says: do not scribble on the tables (textbook p. 25).
[1 mark]
(b)Mengapakah kita tidak boleh mencontengi meja?Why must we not scribble on the tables?
Show answerHide answer
Tick each point you got.
[1 mark]
(c)Selepas aktiviti, nyatakan satu perkara yang mesti dilakukan oleh murid-murid itu sebelum keluar dari bilik sains.After the activity, state one thing the pupils must do before they leave the Science Room.
Show answerHide answer
Any 1 points
Any one. After an activity: clean the apparatus, put it back in its place and switch off the fans and lights so we do not waste electricity (p. 25-26).
Tick each point you got.
13
Question 13
Farah makan nasi goreng yang dimasak dengan telur dan kubis.Farah eats fried rice cooked with egg and cabbage.
[1 mark]
(a)Telur kaya dengan satu kelas makanan. Apakah kelas makanan itu?Egg is rich in one class of food. What is the class of food?
Show answerHide answer
Protein
Fish, chicken, meat, eggs and milk are rich in protein (textbook p. 43).
[1 mark]
(b)Nasi kaya dengan karbohidrat. Mengapakah kita memerlukan karbohidrat?Rice is rich in carbohydrate. Why do we need carbohydrate?
Show answerHide answer
Tick each point you got.
[1 mark]
(c)Farah makan nasi gorengnya dengan sangat cepat. Nyatakan satu kesan kepada Farah.Farah eats her fried rice very fast. State one effect on Farah.
Show answerHide answer
Any 1 points
Any one. Eating too fast can make us cough or choke (textbook p. 54).
Tick each point you got.
[1 mark]
(d)Makanan yang tidak dicernakan keluar dari badan melalui bahagian yang manakah?Through which part of the body does the undigested food leave the body?
Show answerHide answer
Anus
Food that is not digested becomes faeces and leaves the body through the anus (textbook p. 53).
14
Question 14
Rajah 10 menunjukkan tiga jenis tumbuhan, P, Q dan R. Bulatkan cara setiap tumbuhan itu membiak.Diagram 10 shows three kinds of plants, P, Q and R. Circle the way each plant reproduces.
[1 mark]
(a)Tumbuhan PPlant P
Show answerHide answer
Seeds
Papaya plants have fruits with seeds inside, so they reproduce through seeds.
[1 mark]
(b)Tumbuhan QPlant Q
Show answerHide answer
Underground stems
An onion is a fat stem under the soil that stores food. New plants grow from it.
[1 mark]
(c)Tumbuhan RPlant R
Show answerHide answer
Spores
Mushrooms and ferns have no flowers. They reproduce through spores (textbook p. 73).
[1 mark]
(d)Apabila satu jenis tumbuhan mati sepenuhnya dan hilang selama-lamanya, kita katakan tumbuhan itu mengalami ______.When a kind of plant dies out completely and is gone forever, we call this ______.
Show answerHide answer
Plants reproduce so that their kind does not die out. When a kind of plant is gone forever, it is called extinction (textbook p. 72).
Tick each point you got.
15
Question 15
Rajah 11 menunjukkan bentuk sebuah kolam ikan yang dilukis pada kertas graf. Setiap petak ialah 1 cm × 1 cm. Nora menganggarkan luas kolam itu dengan mengira petak yang penuh dan petak yang separuh penuh atau lebih.Diagram 11 shows the outline of a fish pond drawn on graph paper. Each square is 1 cm × 1 cm. Nora estimates the area of the pond by counting the full squares and the squares that are half full or more.
[1 mark]
(a)Berapakah bilangan petak yang penuh di dalam kolam itu?How many squares are full inside the pond?
Show answerHide answer
Tick each point you got.
[1 mark]
(b)Berapakah bilangan petak yang separuh penuh atau lebih tetapi tidak penuh?How many squares are half full or more, but not full?
Show answerHide answer
Tick each point you got.
[1 mark]
(c)Anggarkan luas kolam itu. Tulis unit juga.Estimate the area of the pond. Write the unit too.
Show answerHide answer
Count the full squares and the squares that are half full or more. Do not count squares that are less than half full (textbook p. 84).
Tick each point you got.
[1 mark]
(d)Mengapakah luas kolam itu hanya satu anggaran dan bukan nombor yang tepat?Why is the area of the pond only an estimate and not an exact number?
Show answerHide answer
Tick each point you got.
16
Question 16
Syed memasukkan sebiji oren ke dalam bikar X yang berisi air. Oren itu terapung. Kemudian, dia mengupas kulit oren itu dan memasukkan oren yang tidak berkulit ke dalam bikar Y yang berisi air. Rajah 12 menunjukkan keputusannya.Syed puts an orange into beaker X which has water. The orange floats. Then he peels the skin off the orange and puts the peeled orange into beaker Y which has water. Diagram 12 shows the results.
[1 mark]
(a)Dalam bikar X, oren dengan kulit ______ daripada air.In beaker X, the orange with its skin is ______ than water.
Show answerHide answer
less dense
An object that is less dense than water floats.
[1 mark]
(b)Mengapakah oren itu tenggelam di dalam bikar Y?Why does the orange sink in beaker Y?
Show answerHide answer
The orange skin has many air spaces, like a little life jacket (textbook p. 104).
Tick each point you got.
[1 mark]
(c)Syed menuang minyak masak perlahan-lahan ke dalam air di dalam bikar. Di manakah minyak itu berada?Syed slowly pours cooking oil into the water in a beaker. Where does the oil stay?
Show answerHide answer
On top of the water
Cooking oil is less dense than water, so it floats on top of the water (textbook p. 101).
[1 mark]
(d)Ladang ikan menggunakan pelampung untuk menahan sangkar ikan. Mengapakah pelampung perlu kurang tumpat daripada air?A fish farm uses buoys to hold up its fish cages. Why must the buoys be less dense than water?
Show answerHide answer
Buoys that are less dense than water float and hold the fish cages up (textbook p. 102).
Tick each point you got.
17
Question 17
Farah tidak mempunyai kertas litmus. Dia menggunakan ekstrak kunyit dan ekstrak kubis ungu untuk menguji bahan P dan Q. Jadual di bawah menunjukkan keputusannya.
Farah has no litmus paper. She uses turmeric extract and purple cabbage extract to test substances P and Q. The table shows her results.
| Ekstrak / Extract | Bahan P / Substance P | Bahan Q / Substance Q |
|---|---|---|
| Kunyit / Turmeric | Bertukar menjadi perang kemerahan / Turns reddish-brown | Kekal kuning / Stays yellow |
| Kubis ungu / Purple cabbage | Bertukar menjadi hijau / Turns green | Bertukar menjadi merah jambu / Turns pink |
[1 mark]
(a)Nyatakan sifat bahan P.State the property of substance P.
Show answerHide answer
Turmeric turns reddish-brown and purple cabbage turns green in an alkaline substance (textbook p. 112).
Tick each point you got.
[1 mark]
(b)Nyatakan sifat bahan Q.State the property of substance Q.
Show answerHide answer
Purple cabbage turns pink or red in an acidic substance.
Tick each point you got.
[2 marks]
(c)Farah mahu menggunakan hanya satu ekstrak untuk mengetahui sama ada sesuatu bahan berasid atau beralkali. Ekstrak manakah yang patut digunakan, ekstrak kunyit atau ekstrak kubis ungu? Terangkan jawapan kamu.Farah wants to use only one extract to find out whether a substance is acidic or alkaline. Which extract should she use, turmeric extract or purple cabbage extract? Explain your answer.
Show answerHide answer
Purple cabbage extract shows both: pink or red for an acid and green for an alkali. Turmeric stays yellow with an acid, so it cannot show that a substance is acidic.
Tick each point you got.
18
Question 18

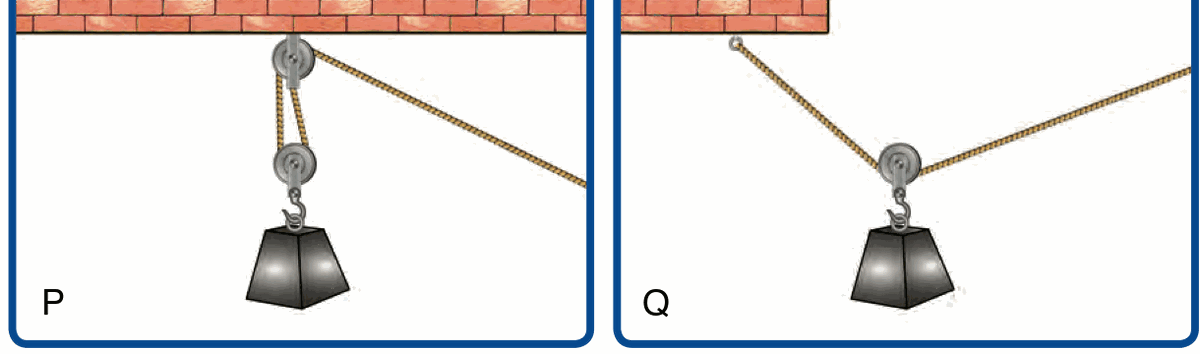

Rajah 13 menunjukkan dua jenis takal, P dan Q, yang digunakan untuk menaikkan beban.Diagram 13 shows two types of pulleys, P and Q, used to lift a load.
[1 mark]
(a)Takal P ialahPulley P is a
Show answerHide answer
compound pulley
P uses a fixed pulley and a movable pulley together, so it is a compound pulley (textbook p. 135).
[1 mark]
(b)Takal Q ialahPulley Q is a
Show answerHide answer
movable pulley
The wheel of Q hangs on the rope and moves up with the load, so it is a movable pulley.
[1 mark]
(c)Nyatakan satu tempat yang menggunakan kren yang mempunyai takal.State one place that uses cranes with pulleys.
Show answerHide answer
Any 1 points
Any one (textbook p. 136).
Tick each point you got.
Test specification (JSU)
| Unit | Remembering | Understanding | Applying | Analysing | Evaluating | Creating | Items | marks |
|---|---|---|---|---|---|---|---|---|
| 1. Scientific skills | – | – | 2 (5) | – | – | – | 2 | 5 |
| 2. Science room rules | – | 2 (4) | – | – | – | – | 2 | 4 |
| 3. Humans | 1 (1) | 1 (4) | – | – | – | – | 2 | 5 |
| 4. Animals | – | 1 (1) | – | – | – | – | 1 | 1 |
| 5. Plants | 2 (5) | – | – | – | – | – | 2 | 5 |
| 6. Measurement | – | – | 2 (5) | – | – | – | 2 | 5 |
| 7. Density | – | 1 (1) | – | 1 (4) | – | – | 2 | 5 |
| 8. Acid and alkali | – | – | 1 (1) | – | 1 (4) | – | 2 | 5 |
| 9. The solar system | 1 (1) | – | – | – | – | – | 1 | 1 |
| 10. Machine | 1 (3) | 1 (1) | – | – | – | – | 2 | 4 |
| Total | 5 (10) | 6 (11) | 5 (11) | 1 (4) | 1 (4) | 0 (0) | 18 | 40 |
Each cell shows items (marks).
