Practice paper, not an official KPM paper
Sains Tahun 5
Ujian Akhir Sesi AkademikEnd of Academic Session Test
SainsScience
Darjah 5, 1 jam 15 minit / 1 hour 15 minutes, 50 marks
Nama / Name
Kelas / Class
Tarikh / Date
Markah / Marks: / 50
Instructions
- Jawab semua soalan.Answer all questions.
- Bahagian A: bulatkan satu jawapan yang betul.Section A: circle one correct answer.
- Bahagian B dan C: tulis jawapan anda di ruang yang disediakan.Sections B and C: write your answers in the spaces provided.
Answer schemes are in English (DLP).
Practice shows answers as you go. Exam times you and hides answers until you submit.
Bahagian ASection A
10 marksJawab semua soalan. Setiap soalan diikuti oleh empat pilihan jawapan, A, B, C dan D. Bulatkan satu jawapan yang betul.Answer all questions. Each question has four options, A, B, C and D. Circle one correct answer.
1
Question 1
Hakim menyiasat jarak yang dilalui oleh sebuah kereta mainan apabila ketinggian landasan diubah. Dia menaikkan landasan itu dengan buku. Jadual 1 menunjukkan keputusannya.
Apakah pemboleh ubah bergerak balas dalam penyiasatan ini?Hakim investigates the distance travelled by a toy car when the height of a ramp is changed. He raises the ramp with books. Table 1 shows his results. What is the responding variable in this investigation?
| Bilangan buku / Number of books | 1 | 2 | 3 |
|---|---|---|---|
| Jarak yang dilalui / Distance travelled (cm) | 40 | 75 | 110 |
Show answerHide answer
B
The responding variable is what we measure and what changes because of the manipulated variable. The number of books is the manipulated variable. The mass of the car and the type of floor are kept the same (constant variables). Textbook p. 6.
2
Question 2
Aina jatuh daripada basikal dan tulang lengan bawahnya patah. Lengannya menjadi bengkak kerana aliran darah di lengan itu terganggu. Dua sistem manakah yang terganggu?Aina falls off her bicycle and a bone in her forearm breaks. Her arm becomes swollen because the flow of blood in the arm is disturbed. Which two systems are disturbed?
Show answerHide answer
A
A broken bone disturbs the skeletal system. The swelling shows that blood flow, which belongs to the blood circulatory system, is disturbed too (textbook p. 37). The systems of the body depend on one another.
3
Question 3
Rajah 1 menunjukkan siratan makanan di sebuah terumbu karang. Semua landak laut di terumbu karang itu mati kerana penyakit. Apakah yang akan berlaku?Diagram 1 shows a food web on a coral reef. All the sea urchins on the reef die from a disease. What will happen?
Show answerHide answer
C
Only the sea urchin is eaten by the octopus, so the octopus loses its only food and its number will fall. The grouper can still eat parrotfish, so it still has food. Fewer animals eat the seaweed, so the seaweed does not decrease. The shark eats only the grouper, whose food has not gone.
4
Question 4
Tumbuhan X menggulung daunnya apabila cuaca panas dan musim kemarau supaya tidak banyak air hilang. Apakah tumbuhan X?Plant X rolls its leaves when the weather is hot and in the dry season so that it does not lose much water. What is plant X?
Show answerHide answer
D
The turmeric plant rolls its leaves in hot weather to prevent water loss (textbook p. 100). The casuarina has a flexible trunk and needle-shaped leaves to reduce the force of strong winds, the coconut has a flexible trunk and split leaves, and the durian has sharp thorns.
5
Question 5
Rajah 2 menunjukkan litar yang dibina oleh Rina. Dia menambah dua biji sel kering lagi dalam litar itu dan satu mentol baharu pada cabang baharu. Bagaimanakah kecerahan mentol P, Q dan R berbanding dengan sebelum itu?Diagram 2 shows a circuit that Rina builds. She adds two more dry cells to the circuit and a new bulb on a new branch. How does the brightness of bulbs P, Q and R compare with before?
Show answerHide answer
C
More dry cells make the bulbs brighter in a parallel circuit. Each bulb is on its own branch, so adding a bulb in a new branch does not make the other bulbs dimmer (textbook pp. 127–128).
6
Question 6
Rajah 3 menunjukkan seketul batu pada suhu 90 °C dimasukkan ke dalam sebikar air pada suhu 20 °C. Tiada haba hilang ke persekitaran. Selepas beberapa lama, suhu batu dan suhu air menjadi sama. Apakah suhu yang mungkin?Diagram 3 shows a stone at 90 °C put into a beaker of water at 20 °C. No heat is lost to the surroundings. After some time, the temperature of the stone and the temperature of the water become the same. What could this temperature be?
Show answerHide answer
B
Heat flows from the hotter stone to the cooler water. The stone loses heat, so it falls below 90 °C. The water gains heat, so it rises above 20 °C. They stop changing when both have the same temperature, which must be between 20 °C and 90 °C. Only 55 °C is.
7
Question 7
Jadual 2 menunjukkan dua objek besi di taman permainan sekolah. Apakah cara paling sesuai untuk mencegah X dan Y daripada berkarat?
Table 2 shows two iron objects in the school playground. What is the most suitable way to stop X and Y from rusting?
| Objek / Object | Keterangan / Description |
|---|---|
| X | Rantai buaian yang sentiasa bergerak / A swing chain that keeps moving |
| Y | Pagar besi yang tidak bergerak / An iron fence that does not move |
Show answerHide answer
D
Oil or grease suits moving parts such as chains. Paint covers the surface of a fence or gate (textbook p. 170). Paint on a moving chain would peel off.
8
Question 8
Jadual 3 menunjukkan sifat tiga bahan, X, Y dan Z. Antara yang berikut, manakah yang benar?
Table 3 shows the properties of three substances, X, Y and Z. Which statement is correct?
| Bahan / Substance | Bentuk tetap? / Fixed shape? | Isi padu tetap? / Fixed volume? |
|---|---|---|
| X | Ya / Yes | Ya / Yes |
| Y | Tidak / No | Ya / Yes |
| Z | Tidak / No | Tidak / No |
Show answerHide answer
A
A solid has a fixed shape and volume (X). A liquid has a fixed volume but no fixed shape (Y). A gas has neither (Z). A liquid is not fixed in shape, so Y is a liquid, not a gas; a fixed volume does not make Y a solid (textbook p. 180).
9
Question 9
Rajah 4 menunjukkan buruj yang dilihat oleh seorang petani di belahan bumi utara pada zaman dahulu, sebelum kalendar dicipta. Apakah yang diberitahu oleh buruj itu kepada petani?Diagram 4 shows a constellation that a farmer in the northern hemisphere saw long ago, before calendars were invented. What does the constellation tell the farmer?
Show answerHide answer
B
The seven-star pattern like a ladle is the Big Dipper. Farmers used it to know that the planting season had started (textbook p. 212). Orion shows the start of winter, and the Scorpion shows the harvesting season.
10
Question 10
Gerudi tangan digunakan untuk membuat lubang pada papan. Gerudi itu mempunyai baji, skru dan roda dan gandar. Antara yang berikut, yang manakah fungsi yang betul bagi mesin ringkas dalam gerudi tangan itu?A hand drill is used to make holes in a plank. The drill has a wedge, a screw and a wheel and axle. Which is the correct function of the simple machines in the hand drill?
Show answerHide answer
C
In a hand drill the wedge makes holes and the wheel and axle makes the handle easier to turn (textbook p. 221). The screw fastens parts.
Bahagian BSection B
8 marksJawab semua soalan. Tulis jawapan anda di ruang yang disediakan.Answer all questions. Write your answers in the spaces provided.
11
Question 11
Besi akan berkarat jika terdedah kepada air dan udara. Kita boleh mencegah karat dengan beberapa cara.Iron rusts when it is exposed to water and air. We can prevent rusting in several ways.
[2 marks]
(a)Padankan setiap objek besi dengan cara yang paling sesuai untuk mencegahnya daripada berkarat. Tulis huruf yang betul.
Cara: P menyapu minyak atau gris Q menyalut dengan plastik R menyadur dengan logam tahan karat S mengecat
Objek: (i) penyangkut baju besi (ii) tin makanan besiMatch each iron object with the most suitable way to stop it from rusting. Write the correct letter.
Ways: P applying oil or grease Q coating with plastic R plating with a rustproof metal S painting
Objects: (i) an iron coat hanger (ii) an iron food can
Cara: P menyapu minyak atau gris Q menyalut dengan plastik R menyadur dengan logam tahan karat S mengecat
Objek: (i) penyangkut baju besi (ii) tin makanan besiMatch each iron object with the most suitable way to stop it from rusting. Write the correct letter.
Ways: P applying oil or grease Q coating with plastic R plating with a rustproof metal S painting
Objects: (i) an iron coat hanger (ii) an iron food can
Show answerHide answer
Textbook p. 170: a plastic coating is used on a coat hanger, and food cans are plated with tin.
Tick each point you got.
[2 marks]
(b)Bulatkan dua objek yang akan berkarat jika ditinggalkan di luar rumah semasa hujan selama beberapa minggu.
penyodok besi baldi plastik bangku kayu paku besi balang kaca
Tulis nama dua objek itu.Circle two objects that will rust if they are left outside in the rain for a few weeks.
iron spade plastic bucket wooden stool iron nail glass jar
Write the names of the two objects.
penyodok besi baldi plastik bangku kayu paku besi balang kaca
Tulis nama dua objek itu.Circle two objects that will rust if they are left outside in the rain for a few weeks.
iron spade plastic bucket wooden stool iron nail glass jar
Write the names of the two objects.
Show answerHide answer
Only objects made of iron rust. Plastic, wood and glass do not (textbook p. 166).
Tick each point you got.
12
Question 12
Rajah 5 menunjukkan dua organ, P dan Q, di dalam dada manusia.Diagram 5 shows two organs, P and Q, in a human chest.
[2 marks]
(a)Namakan organ P dan organ Q. Pilih daripada: jantung, peparu, salur darah.Name organ P and organ Q. Choose from: heart, lungs, blood vessels.
Show answerHide answer
Tick each point you got.
[2 marks]
(b)(i) Nyatakan satu fungsi organ Q.
(ii) Gas apakah yang bergerak dari udara masuk ke dalam darah di P?(i) State one function of organ Q. (ii) Which gas moves from the air into the blood at P?
(ii) Gas apakah yang bergerak dari udara masuk ke dalam darah di P?(i) State one function of organ Q. (ii) Which gas moves from the air into the blood at P?
Show answerHide answer
The heart pumps blood. Oxygen enters the blood and carbon dioxide leaves it in the lungs (textbook pp. 28, 30).
Tick each point you got.
Bahagian CSection C
32 marksJawab semua soalan. Tulis jawapan anda di ruang yang disediakan.Answer all questions. Write your answers in the spaces provided.
13
Question 13
Hana membuat model landasan kereta api menggunakan dua batang rod logam. Hujung luar kedua-dua rod dipasang pada blok tetap. Dia memanaskan rod itu dengan lampu dan mengukur lebar jurang di antara rod pada suhu yang berbeza. Rajah 6 menunjukkan susunan radas dan Jadual 4 menunjukkan keputusannya.
Hana makes a model of a railway track from two metal rods. The outer ends of both rods are fixed to blocks. She heats the rods with a lamp and measures the width of the gap between the rods at different temperatures. Diagram 6 shows the apparatus and Table 4 shows the results.
| Suhu rod / Temperature of the rods (°C) | 30 | 40 | 50 | 60 |
|---|---|---|---|---|
| Lebar jurang / Width of the gap (mm) | 10 | 8 | 6 | 4 |
[2 marks]
(a)Nyatakan
(i) pemboleh ubah dimanipulasikan,
(ii) pemboleh ubah bergerak balas.State (i) the manipulated variable, (ii) the responding variable.
(i) pemboleh ubah dimanipulasikan,
(ii) pemboleh ubah bergerak balas.State (i) the manipulated variable, (ii) the responding variable.
Show answerHide answer
Hana changes the temperature of the rods and measures the width of the gap (textbook p. 6).
Tick each point you got.
[1 mark]
(b)Nyatakan corak perubahan lebar jurang apabila suhu rod meningkat.State the pattern of the change in the width of the gap when the temperature of the rods increases.
Show answerHide answer
Tick each point you got.
[1 mark]
(c)Ramalkan lebar jurang apabila suhu rod ialah 70 °C.Predict the width of the gap when the temperature of the rods is 70 °C.
Show answerHide answer
The gap decreases by 2 mm for every 10 °C: 4 − 2 = 2 mm.
Tick each point you got.
[1 mark]
(d)Berikan satu inferens mengapa jurang itu menjadi lebih sempit.Give one inference why the gap becomes narrower.
Show answerHide answer
Tick each point you got.
[1 mark]
(e)Tulis kesimpulan bagi penyiasatan ini.Write the conclusion of this investigation.
Show answerHide answer
Tick each point you got.
[1 mark]
(f)Jurang sengaja ditinggalkan di antara sambungan landasan kereta api sebenar. Mengapa?Gaps are left on purpose between the connectors of a real railway track. Why?
Show answerHide answer
Textbook p. 158.
Tick each point you got.
14
Question 14
Rajah 7 menunjukkan siratan makanan di sebuah paya bakau. Pada akhir tahun 2022, pemburu haram menangkap semua burung bangau di kawasan itu. Jadual 5 menunjukkan bilangan burung bangau dan belacak di kawasan itu pada awal tahun 2022 dan pada tahun 2024.
Diagram 7 shows a food web in a mangrove swamp. At the end of 2022, illegal hunters caught all the herons in the area. Table 5 shows the number of herons and mudskippers in the area at the start of 2022 and in 2024.
| Haiwan / Animal | Awal 2022 / Start of 2022 | 2024 |
|---|---|---|
| Burung bangau / Heron | 12 | 0 |
| Belacak / Mudskipper | 40 | 75 |
[1 mark]
(a)Namakan pengeluar dalam siratan makanan ini.Name the producer in this food web.
Show answerHide answer
Tick each point you got.
[1 mark]
(b)Bina satu rantai makanan yang berakhir dengan burung bangau.Construct one food chain that ends with the heron.
Show answerHide answer
Tick each point you got.
[1 mark]
(c)Berapakah bilangan belacak yang bertambah pada tahun 2024 berbanding awal tahun 2022?How many more mudskippers are there in 2024 than at the start of 2022?
Show answerHide answer
Tick each point you got.
[1 mark]
(d)Terangkan mengapa bilangan belacak bertambah.Explain why the number of mudskippers increased.
Show answerHide answer
Tick each point you got.
[1 mark]
(e)Ramalkan perubahan bilangan siput dalam dua tahun akan datang. Beri satu sebab.Predict the change in the number of snails in the next two years. Give one reason.
Show answerHide answer
More mudskippers eat more snails, so the snails decrease (textbook pp. 82–84, 87).
Tick each point you got.
15
Question 15

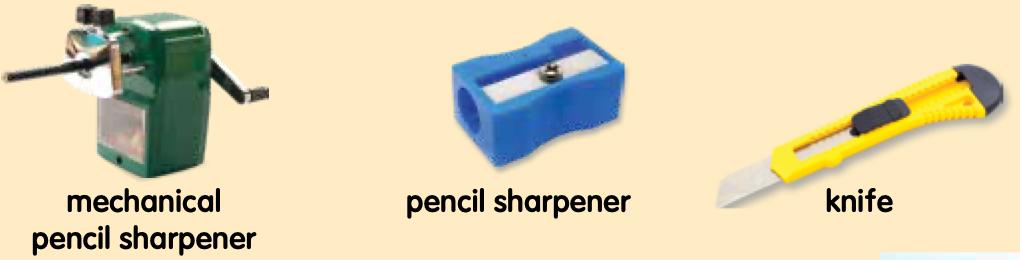

Rajah 8 menunjukkan tiga alat untuk meraut pensel. Sekolah Mei Ling hendak membeli satu jenis alat untuk digunakan oleh murid di dalam kelas. Jadual 6 membandingkan ketiga-tiga alat itu.
Diagram 8 shows three tools for sharpening a pencil. Mei Ling's school wants to buy one kind of tool for the pupils to use in class. Table 6 compares the three tools.
| Alat / Tool | Keselamatan / Safety | Jangka hayat / Life span | Kos untuk 5 tahun / Cost for 5 years |
|---|---|---|---|
| X: pengasah pensel mekanikal / mechanical pencil sharpener | Mata pisau berada di dalam badan / Blade is inside the body | Lebih daripada 5 tahun; mata pisau boleh diganti / More than 5 years; the blade can be replaced | RM 25 (sebuah / one) |
| Y: pengasah pensel biasa / ordinary pencil sharpener | Mata pisau kecil dan tertutup / Small, covered blade | Kira-kira 3 bulan; dibuang apabila tumpul / About 3 months; thrown away when blunt | RM 30 (20 buah, RM 1.50 sebuah, baharu setiap 3 bulan / 20 sharpeners at RM 1.50 each, a new one every 3 months) |
| Z: pisau / knife | Mata pisau terdedah dan boleh melukakan jari / Open blade that can cut fingers | Kira-kira 1 tahun / About 1 year | RM 20 (5 bilah, RM 4 sebilah, baharu setiap tahun / 5 knives at RM 4 each, a new one every year) |
[2 marks]
(a)Namakan dua mesin ringkas dalam pengasah pensel mekanikal X.Name two simple machines in the mechanical pencil sharpener X.
Show answerHide answer
Textbook p. 220.
Tick each point you got.
[1 mark]
(b)Apakah fungsi pemutar (engkol) pada pengasah pensel X?What is the function of the crank (the handle that is turned) of sharpener X?
Show answerHide answer
Tick each point you got.
[2 marks]
(c)Mei Ling ingin membandingkan kelajuan meraut bagi ketiga-tiga alat itu. Tulis definisi secara operasi bagi "kelajuan meraut".Mei Ling wants to compare how fast the three tools sharpen a pencil. Write an operational definition of "speed of sharpening".
Show answerHide answer
An operational definition says what you do and what you measure (Unit 1, textbook p. 12). This part tests Unit 1.
Tick each point you got.
[1 mark]
(d)Alat manakah yang patut dibeli oleh sekolah?Which tool should the school buy?
Show answerHide answer
X
X is safe, lasts more than five years and costs less than Y over five years (Z is cheaper but unsafe and short-lived).
[2 marks]
(e)Berdasarkan Jadual 6, berikan dua sebab bagi jawapan anda di (d).Based on Table 6, give two reasons for your answer in (d).
Show answerHide answer
Any 2 points
Any two characteristics of a sustainable tool shown by the table (textbook pp. 224–225).
Tick each point you got.
[2 marks]
(f)Habuk kayu dan kepingan pensel di dalam kotak pengasah pensel X sukar dikeluarkan dan dibersihkan. Lukis pengasah pensel X (bentuk kotak yang ringkas memadai) dengan satu perubahan yang menjadikannya lebih mudah dibersihkan. Labelkan perubahan itu dan nyatakan ciri alat yang lestari yang ditunjukkan oleh perubahan anda.The wood shavings in the box of sharpener X are difficult to take out and clean. Draw sharpener X (a simple box shape is enough) with one change that makes it easier to clean. Label your change and state the characteristic of a sustainable tool that your change shows.
Show answerHide answer
A removable tray lets the user empty and wash the box easily. This shows the characteristic of being easy to maintain (textbook p. 225).
Tick each point you got.
16
Question 16
Aiman membina dua litar, X dan Y, untuk lampu rumah modelnya. Setiap litar menggunakan satu sel kering dan dua mentol yang serupa. Rajah 9 menunjukkan litar X dan litar Y.Aiman builds two circuits, X and Y, for the lamps of his model house. Each circuit uses one dry cell and two identical bulbs. Diagram 9 shows circuit X and circuit Y.
[2 marks]
(a)Namakan jenis litar bagi
(i) litar X,
(ii) litar Y.Name the type of circuit for (i) circuit X, (ii) circuit Y.
(i) litar X,
(ii) litar Y.Name the type of circuit for (i) circuit X, (ii) circuit Y.
Show answerHide answer
Tick each point you got.
[1 mark]
(b)Aiman mencabut mentol A daripada litar X. Apakah pemerhatian pada mentol B?Aiman unscrews bulb A from circuit X. What is the observation on bulb B?
Show answerHide answer
Tick each point you got.
[2 marks]
(c)Kemudian, Aiman mencabut mentol C daripada litar Y.
(i) Apakah pemerhatian pada mentol D?
(ii) Berikan satu inferens.Then Aiman unscrews bulb C from circuit Y. (i) What is the observation on bulb D? (ii) Give one inference.
(i) Apakah pemerhatian pada mentol D?
(ii) Berikan satu inferens.Then Aiman unscrews bulb C from circuit Y. (i) What is the observation on bulb D? (ii) Give one inference.
Show answerHide answer
Tick each point you got.
[2 marks]
(d)Litar yang manakah, X atau Y, sesuai digunakan untuk lampu di rumah sebenar? Beri satu sebab.Which circuit, X or Y, is suitable for the lamps in a real house? Give one reason.
Show answerHide answer
Textbook pp. 130–131: in a parallel circuit only the bulb on the open branch goes out.
Tick each point you got.
[1 mark]
(e)Hafiz mencucuk terlalu banyak palam ke dalam satu soket. Nyatakan satu bahaya yang boleh berlaku.Hafiz puts too many plugs into one socket. State one danger that can happen.
Show answerHide answer
Any 1 points
Any one. Connect only one plug to one socket (textbook pp. 136–138).
Tick each point you got.
[2 marks]
(f)Aiman mahu setiap lampu di rumah modelnya dikawal oleh suisnya sendiri. Dengan menggunakan simbol litar, lukis gambar rajah litar yang menggunakan satu sel kering, dua mentol dan dua suis supaya setiap suis hanya mengawal satu mentol.Aiman wants each lamp in his model house to be controlled by its own switch. Using circuit symbols, draw a circuit diagram that uses one dry cell, two bulbs and two switches so that each switch controls only one bulb.
Show answerHide answer
Textbook p. 120 for the symbols; the two branches are in parallel so each switch controls only its own bulb.
Tick each point you got.
Test specification (JSU)
| Unit | Remembering | Understanding | Applying | Analysing | Evaluating | Creating | Items | marks |
|---|---|---|---|---|---|---|---|---|
| 1. Scientific skills | – | 1 (1) | – | – | – | – | 1 | 1 |
| 2. Humans | 1 (4) | – | 1 (1) | – | – | – | 2 | 5 |
| 3. Animals | – | – | – | 2 (6) | – | – | 2 | 6 |
| 4. Plants | 1 (1) | – | – | – | – | – | 1 | 1 |
| 5. Electricity | – | – | 1 (10) | 1 (1) | – | – | 2 | 11 |
| 6. Heat | – | – | 1 (1) | 1 (7) | – | – | 2 | 8 |
| 7. Rusting | – | – | 2 (5) | – | – | – | 2 | 5 |
| 8. Matter | – | – | – | 1 (1) | – | – | 1 | 1 |
| 9. Phases of the Moon and constellations | 1 (1) | – | – | – | – | – | 1 | 1 |
| 10. Machines | 1 (1) | – | – | – | 1 (10) | – | 2 | 11 |
| Total | 4 (7) | 1 (1) | 5 (17) | 5 (15) | 1 (10) | 0 (0) | 16 | 50 |
Each cell shows items (marks).
