Science questions, unit 10
Nama / NameKelas / ClassTarikh / Date

Machine

28 marks. Use Practice to check each answer as you go, or Exam to answer everything against the clock first.

Section A: objective questions

8 marks
Choose the best answer for each question.
1

Question 1

What is a pulley?
Show answerHide answer
A
A pulley is a simple machine which enables a load to be lifted easily using lesser force (textbook p. 128).
For the teacher: Remembering, low difficulty, standard 10.1.1
Textbook p. 128
2

Question 2

The wheel of a pulley turns around a rod in its centre. What is this rod called?
Show answerHide answer
C
The axle is the rod in the centre. The wheel turns around it.
For the teacher: Remembering, low difficulty, standard 10.1.1
Textbook p. 128
3

Question 3

Why does a pulley wheel have a groove?
Show answerHide answer
B
A fixed pulley has a wheel with a groove that lets the rope pass through it. The groove keeps the rope on the wheel.
For the teacher: Understanding, low difficulty, standard 10.1.1
Textbook p. 128
4

Question 4

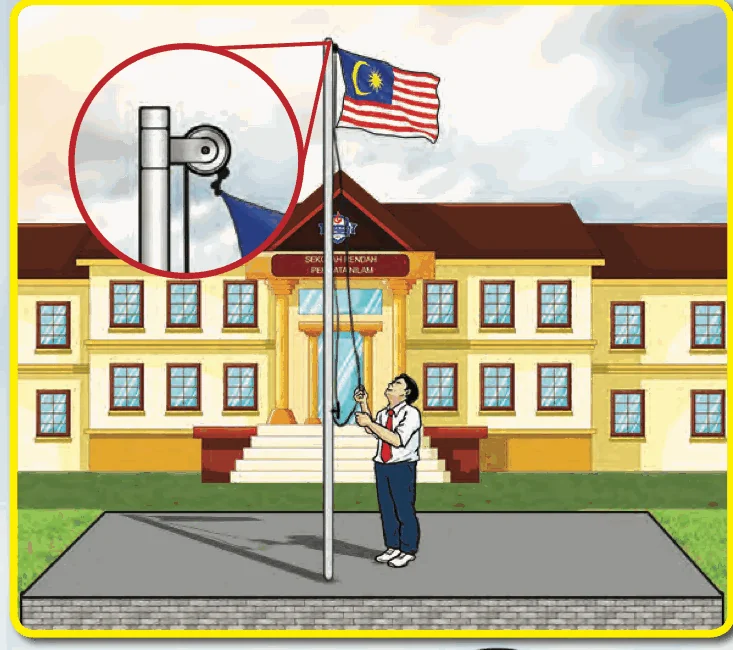

Diagram 1 shows Amir raising the flag at school. He pulls the rope downwards. What happens to the flag?
A pupil pulls a rope at a flagpole; a close-up shows a pulley at the top
Diagram 1
Show answerHide answer
D
The flagpole has a fixed pulley at the top. When the rope is pulled down, the flag on the other side moves up.
For the teacher: Understanding, low difficulty, standard 10.1.3
Textbook p. 131
5

Question 5

Which activity does not use a pulley?
Show answerHide answer
C
Cutting a cake uses a knife, not a pulley. The other three are uses of pulleys in the textbook.
For the teacher: Understanding, low difficulty, standard 10.1.3
Textbook p. 131
6

Question 6

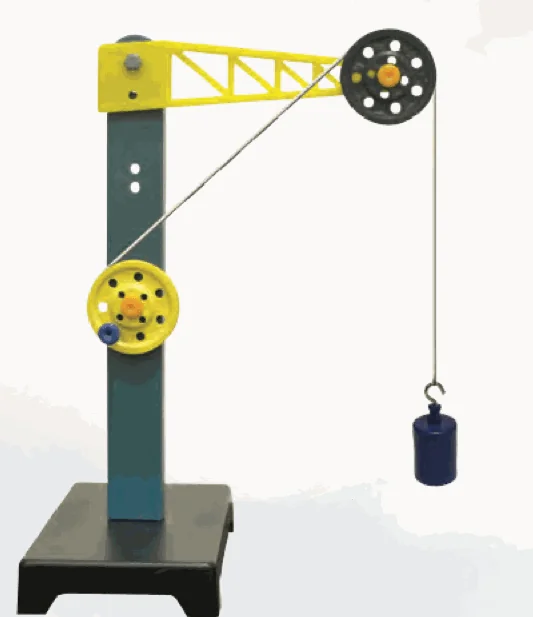

Diagram 2 shows a crane model. Mei Ling wants to lift the load. What should she do?
A crane model with a yellow pulley on the pole and a black pulley at the end of the arm; a load hangs from the rope
Diagram 2
Show answerHide answer
A
The yellow pulley acts as a motor. Turning it pulls the rope through the groove of the black fixed pulley, so the load goes up.
For the teacher: Applying, medium difficulty, standard 10.1.2
Textbook p. 130
7

Question 7

Why do workers at a construction site use a crane with a pulley?
Show answerHide answer
D
A pulley on a crane makes lifting the building materials easier. It does not change how heavy they are.
For the teacher: Understanding, medium difficulty, standard 10.1.3
Textbook p. 136
8

Question 8

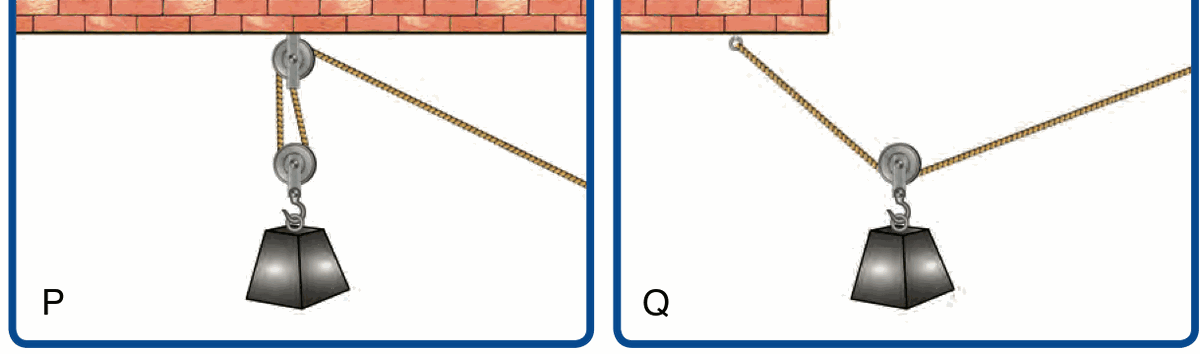

Diagram 3 shows two types of pulleys, P and Q. In Q, the pulley wheel hangs on the rope and moves up with the load. Which is correct?
P: one pulley fixed to the ceiling and another pulley on the load. Q: one pulley hanging on the rope above the load
Diagram 3
Show answerHide answer
B
P uses a fixed pulley and a movable pulley together, so it is a compound pulley. Q's wheel moves with the load, so it is a movable pulley.
For the teacher: Analysing, medium difficulty, standard 10.1.3
Textbook p. 135

Section B: structured questions

20 marks
Answer all the questions.
9

Question 9

Diagram 4 shows a fixed pulley. Name the parts labelled P, Q and S.
A fixed pulley with four labels: P on the edge of the wheel where the rope sits, Q on the wheel, R at the centre of the wheel, S on the rope
Diagram 4
[1 mark] (a)P
Show answerHide answer
Groove
[1 mark] (b)Q
Show answerHide answer
Wheel
[1 mark] (c)S
Show answerHide answer
Rope
For the teacher: Remembering, low difficulty, standard 10.1.1
Textbook p. 128
10

Question 10

Diagram 5 shows three pictures, P, Q and R, of a crane model lifting a load.

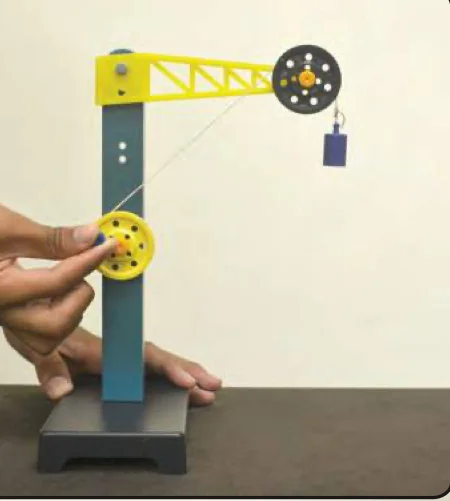

The load is high up near the black pulley
P

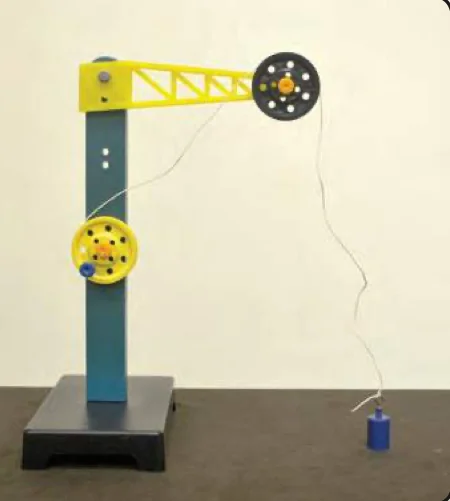

The load rests on the table
Q

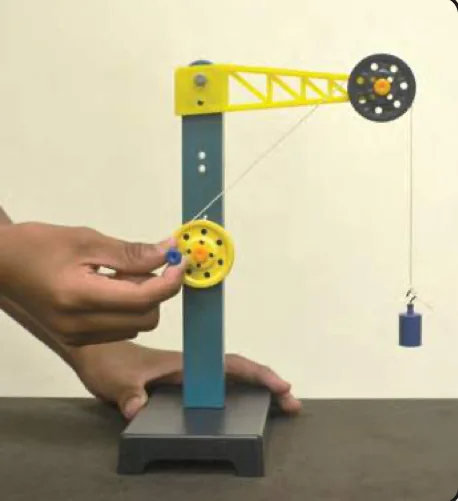

A hand turns the yellow pulley; the load is halfway up
R
[1 mark] (a)Write P, Q and R in the correct order: before, while and after the load is lifted.
Show answerHide answer
Tick each point you got.
[1 mark] (b)When the rope is pulled, the load moves
Show answerHide answer
upwards
[1 mark] (c)Which pulley acts as the fixed pulley?
Show answerHide answer
The black pulley
The black pulley at the end of the arm is the fixed pulley. The yellow pulley acts as a motor.
For the teacher: Understanding, medium difficulty, standard 10.1.2
Textbook p. 130
11

Question 11

Does each activity use a pulley? Choose Yes or No.
[1 mark] (a)Pulling up fishing nets on a fishing boat
Show answerHide answer
Yes
[1 mark] (b)Riding a bicycle to school
Show answerHide answer
No
[1 mark] (c)Unloading a container from a ship at the port
Show answerHide answer
Yes
For the teacher: Applying, low difficulty, standard 10.1.3
Textbook p. 131
12

Question 12

Diagram 6 shows Pak Abu lifting a bucket of water from a well in two ways, P and Q.

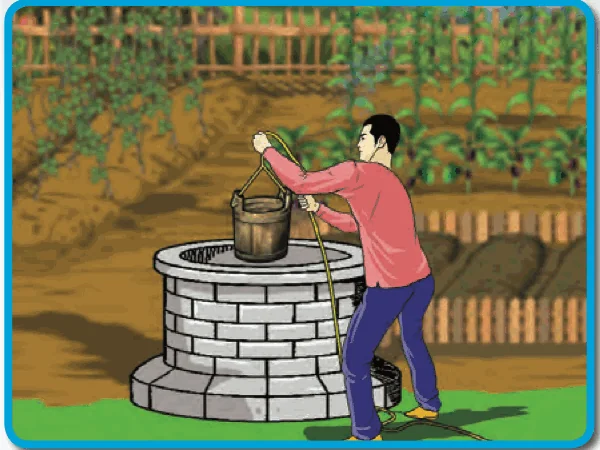

A man pulls a bucket straight up from a well with only a rope
P

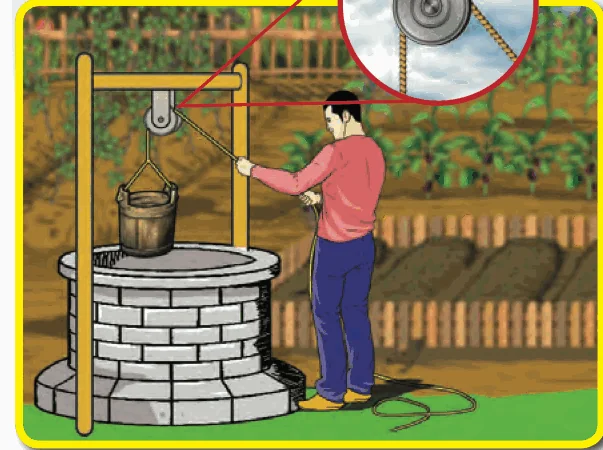

A man pulls a rope down to lift a bucket from a well through a pulley on a frame
Q
[1 mark] (a)Which way is easier?
Show answerHide answer
Q
[1 mark] (b)Give one reason for your answer.
Show answerHide answer
Any 1 points
Tick each point you got.
For the teacher: Analysing, medium difficulty, standard 10.1.3
Textbook p. 131
13

Question 13

Diagram 7 shows a crane at a construction site.

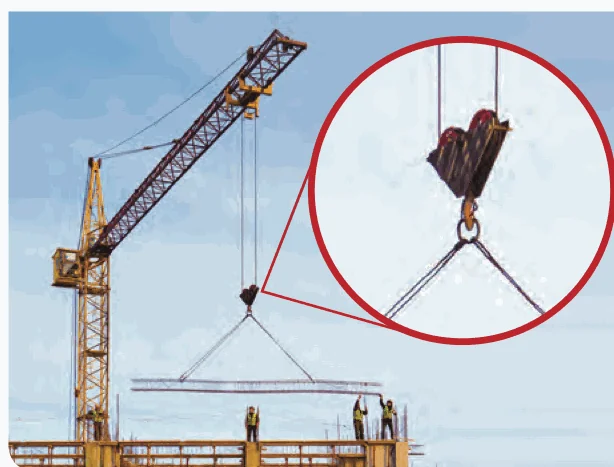

A tower crane lifts steel beams; a close-up shows the pulley and hook
Diagram 7
[1 mark] (a)The pulley on this crane helps to lift
Show answerHide answer
building materials
[1 mark] (b)What will happen to the building work if pulleys are not used?
Show answerHide answer
Any 1 points
Textbook HOTS answer (p. 136): building without pulleys takes a longer time and needs more workers.
Tick each point you got.
For the teacher: Evaluating, high difficulty, standard 10.1.3
Textbook p. 136
14

Question 14

Are these statements true or false?
[1 mark] (a)A pulley is a simple machine.
Show answerHide answer
True
[1 mark] (b)A fixed pulley moves up together with the load.
Show answerHide answer
False
A fixed pulley stays in one place. Only its wheel turns.
[1 mark] (c)When the rope is pulled through the groove, the wheel turns.
Show answerHide answer
True
For the teacher: Understanding, low difficulty, standard 10.1.1
Textbook p. 128
15

Question 15

Diagram 8 shows a problem at an apartment. Aina wants to build a pulley model to help.
Residents carry buckets of water up the stairs from a water lorry because the water supply has been cut off
Diagram 8
[1 mark] (a)Name one recycled material Aina can use to build her pulley model.
Show answerHide answer
Tick each point you got.
[1 mark] (b)Which material can she use as the axle?
Show answerHide answer
A straw
[1 mark] (c)When Aina tests her model, the rope keeps slipping off the wheel. Suggest one way to fix it.
Show answerHide answer
Any 1 points
Tick each point you got.
For the teacher: Creating, high difficulty, standard 10.1.4
Textbook p. 133
16

Question 16

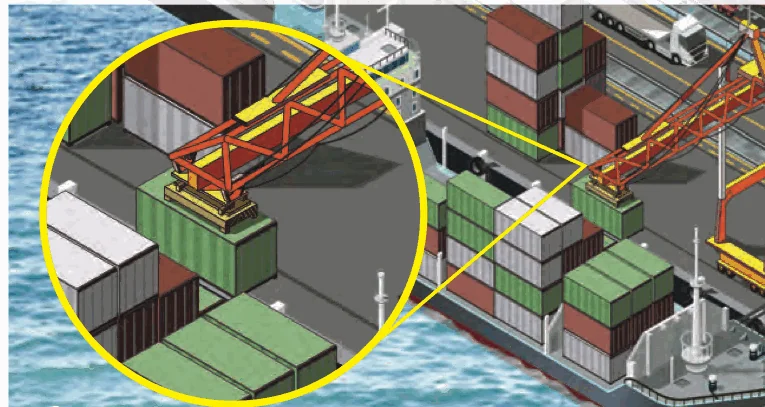

Diagram 9 shows a crane at a port.
A crane at a port lifts a shipping container from a ship
Diagram 9
[1 mark] (a)State the function of the pulley on this crane.
Show answerHide answer
Tick each point you got.
For the teacher: Remembering, low difficulty, standard 10.1.3
Textbook p. 135
